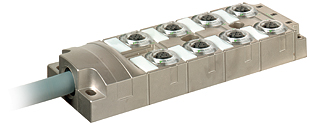

Features
8-way, 5-pole, DIAGNOSTIC
PUR (UL/CSA), halogen free
10.0 m
Operating current: 2 A per port
Contact layout
Contact 1 (+)
Contact 2 (NC)/(S2)
Contact 3 (-)
Contact 4 (NO)/(S1)
Contact 5 (Earth)
LED display LED (green): power LED (yellow): (S1/S2) LED (red): error
Technical Data
Operating voltage 24 V DC (EN 61131-2), potential separation 0 V for left/right side
Current consumption max. 35 mA
Inrush capacity max. 1470 µF
LED display LED (green): P1 and P2; LED (red): ERROR for optical diagnostics
LED display per port LED (yellow): contact 4 and 2; 2 × LED (red): for failure
Diagnostic output active high, max. load 25 mA, wire (brown 2)
Short-circuit and overload protection switched positive
Required power supply with max. ports max. 20 A
Total current max. 10 A
Housing Zinc die casting, matte nickel plated
Operating current (contact 3) max. 2 A (shutoff 2.3...2.7 A)
Protection IP65, IP67, IP68 inserted and tightened (EN 60529)
Temperature range -20...+60 °C
Locking of ports Screw thread M12 × 1 mm
Cable
No./diameter of wires 16×0.34 + 5×0.75 mm²
C-track properties 5 million
Jacket PUR (UL/CSA), halogen free
Outer diameter approx. 11.5 mm
Bend radius (moving) 10 x outer diameter
Description
Functional description All M12 ports are current monitored regarding 0 V total current (contact 3), and are switched off in case of overload or short-circuit (self-resetting). Supply voltage remains the same. In case of a fault the DIAGNOSTIC signal “active high” to the PLC (wire “brown” 2) drops from 24 V DC to 0 V. The operator can immediately react by analyzing the diagnostic signal. - less downtime - easy trouble-shooting due to red LED “ERROR” and red LED at the plug position.
