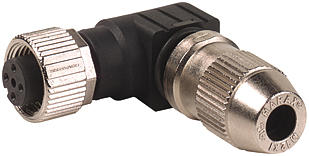

Technical Data
Operating voltage max. 32 V AC/DC
Operating current per contact max. 4 A
Connection cross section 0.25...0.5 mm² (conductor diameter min. 0.1 mm)
Sealing range (cable diameter) 4...5.1 mm
Wire isolation PVC, PP, TPE
Outer wire diameter 1.2...1.6 mm
Locking of ports Screw thread M12 × 1 mm (recommended torque 0.6 Nm) self-securing
Protection IP65 and IP67 when plugged and screwed down (EN 60529)
Temperature range -25...+85 °C
