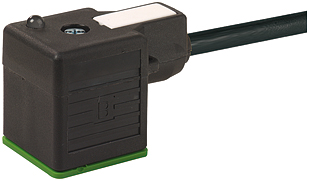

Form A 3x0,75 led musta 5m pvc

4600 / 7000-18021-6160500
14,41€
Tilattavissa



Technical Data
Operating voltage 24 V AC/DC ±25 %
Operating current per contact max. 4 A
Switch off peak max. 55 V
Switch off delay time max. 20 ms
Locking of ports M3 (recommended torque 0.4 Nm)
Protection IP65 and IP67 when plugged and screwed down (EN 60529)
Housing Black plastic (gray on request)
Temperature range -25...+85 °C, depending on cable quality
Cable
No./diameter of wires 3 × 0.75 mm²
Wire isolation PVC (bk, num, gnye)
C-track properties
Jacket PVC
Outer diameter approx. 5.9 mm
Bend radius (moving) 10 x outer diameter
Temperature range (fixed) -30...+70 °C
Temperature range (mobile) -5...+70 °C
