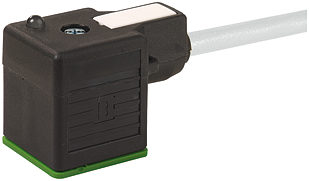

Form A 3x0,75 PVC 5m harmaa

4286 / 7000-18081-2160500
10,73€
Tilattavissa



Technical Data
Operating voltage max. 230 V AC/DC
Operating current per contact max. 10 A
Locking of ports M3 (recommended torque 0.4 Nm)
Protection IP65 and IP67 when plugged and screwed down (EN 60529)
Housing Black plastic (gray on request)
Temperature range -25...+85 °C, depending on cable quality
Cable
No./diameter of wires 3 × 0.75 mm²
Wire isolation PVC (bk, num, gnye)
C-track properties
Jacket PVC
Outer diameter approx. 5.9 mm
Bend radius (moving) 10 x outer diameter
Temperature range (fixed) -30...+70 °C
Temperature range (mobile) -5...+70 °C
