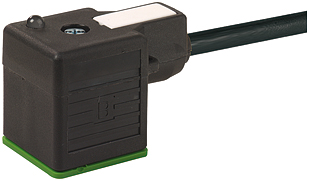

Form A 5x0,75 pur musta 1,5m

4491 / 7000-18121-6280150
18,83€
Tilattavissa


Technical Data
Operating voltage 24 V DC ±25 %
Operating current per contact max. 4 A
Locking of ports M3 (recommended torque 0.4 Nm)
Housing Black plastic (gray on request)
Protection IP65 and IP67 when plugged and screwed down (EN 60529)
Temperature range -25...+85 °C, depending on cable quality
Cable
No./diameter of wires 5 × 0.75 mm²
Wire isolation PVC (bk, num, gnye)
C-track properties 2 million
Jacket PUR/PVC
Outer diameter approx. 7.0 mm
Bend radius (moving) 15 × outer diameter
Temperature range (fixed) -30...+80 °C
Temperature range (mobile) -5...+80 °C
