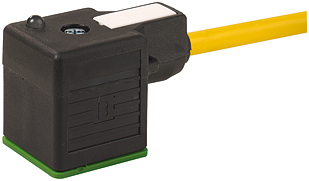

Form A 5x0,75 pvc kelt 1,5m

4514 / 7000-18121-0180150
11,72€
Tilattavissa



Technical Data
Operating voltage 24 V DC ±25 %
Operating current per contact max. 4 A
Locking of ports M3 (recommended torque 0.4 Nm)
Housing Black plastic (gray on request)
Protection IP65 and IP67 when plugged and screwed down (EN 60529)
Temperature range -25...+85 °C, depending on cable quality
Cable
No./diameter of wires 5 × 0.75 mm²
Wire isolation PVC (bk, num, gnye)
C-track properties
Jacket PVC
Outer diameter approx. 7.0 mm
Bend radius (moving) 10 x outer diameter
Temperature range (fixed) -30...+70 °C
Temperature range (mobile) -5...+70 °C
