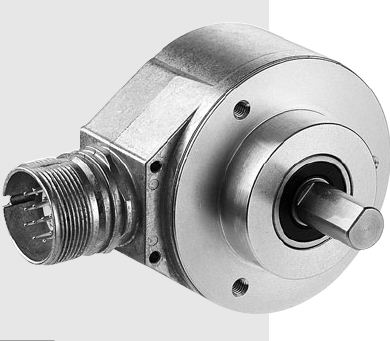

INCREMENTAL ENCODER -Keskiölaippa 10x19 mm akseli

1036720 / DFS60B-S4PA10000
399,09€
Tilattavissa


Shaft diameter: 10 mm x 19 mm
Solid shaft, Face mount flange
Connection type: Connector, M23, 12-pin, radial
Reference signal, number: 1
Reference signal, position: 90 °, electronically, gated with A and B
Electrical interface: 5 V ... 32 V, TTL/HTL programmable
Operating power consumption (no load): 60 mA
Supply voltage: 5 V ... 32 V
Load current: 30
Maximum output frequency: 600 kHz
Zero pulse width: Freely programmable
