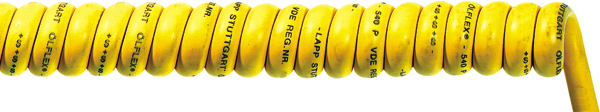

SPIRAL 540 P
Technical Data
*****************
Core identification code:
Up to 5 cores: according to VDE 0293-308
(appendix T9)
Starting at 6 cores: Black with white numbers
Specific insulation resistance:
> 20 GOhm x cm
Conductor stranding;
Fine wire according to VDE 0295 Class 5/ IEC
60228 Class 5
Rated voltage:
0,75 - 1,0 mm²: U0/U: 300/500 V
1,5 - 10,0 mm²: U0/U: 450/750 V
Test voltage:
3000 V
Protective conductor:
G = with protective conductor GN/YE
X = without protective conductor
Range of temperature :
Flexible use: -30°C up to +50°C
*************
